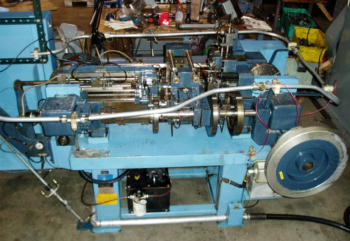

 Nilson 752 4-Slide
Inventory #: 204168
Serial
#: 752103
New: 1996
Capacity: |
Catalog
Specs:
Maximum Diameter Basic Wire.........1/8" Maximum Width Strip Metal..............1 1/2" Standard Feed Length.................................8" Standard Slide Strokes Front..........................1 1/4" Sides...........................2"" Back...........................1 1/4" Sroke of Sripper Rod........1/2" - 2" Motor.......2 h.p. Variable Speed Production.............60-300 spm Opening in Bed..............4" x 4" Wire Line.....................42 3/8" Floor Space...............48" x 103" Weight.......................4000 lbs. Press Data Stroke.....3/8" - 17/32" Die Set Length...6 1/2" Tonnage............10-25
Equipped With:
Equipped with: Air Clutch and Brake Shell Cams Form Stripper 2 10 Ton Die Heads Lube System, Flat Stock Straightener Front and Rear Cutoff, Rear Aux. Slide Extra Slides (split), Cams, etc. Variable Speed Drive
Location: Lake Forest
