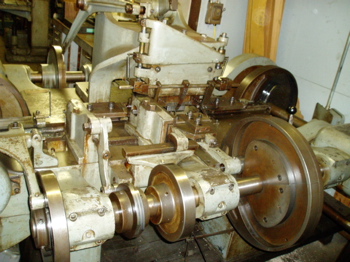

 Baird 30-Apr 4-Slide
Inventory #: 206185
Serial
#: 4607-37
New: 1960
Capacity: 1/4î |
Catalog
Specs:
Maximum Wire Diameter...........................1/4" Standard Width Coil Stock.........................1 1/4" Roll Straightener Size...............................No. 5 Maximum Feed Length.............................30" (32 1/2" w/o feed stops) Operating Speed.....................................50 rpms Standard Stroke With Cams Front Slide............................3 1/2" Rear Slide.............................3 1/2" Side Slides............................5 1/2" Vertical Motion.......................2 1/4" Stroke of Vertical Transfer..........1 1/2" Opening in Bed....................................20" x 11 1/2" Diameter of Cam Shafts..........................3" Floor Space........155" x 88" Weight........9000 lbs.
Equipped With:
Equipped With: Split Cams Mechanical Clutch Form Stripper Cutoff, Stock Check Variable Speed Drive 2 Plane Straightener
Location: Lake Forest
