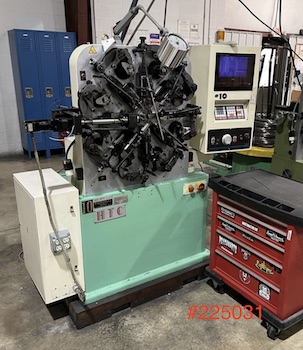

 HTC CNC-20-8 CNC Wire Former
Inventory #: 225031
Serial
#: 992014-8
New: 1999
Capacity: |
Catalog
Specs:
Wire Diameter: .024“ - .078” (.6 mm - 2.0 mm) Max. OD: 1.57” (40 mm) Max. Spring Length: 3.94” (100 mm) Max. Feed Speed: 600 mm per min. Min. Feed Value: +/- .0004” (0.01 mm) Max. Feed Value: +/- 393.7” (9999.9 mm) Per Step Min. Cam Value: +/- 0.1° Max Cam Value: +/- 359.9° Max. Cam Speed: 99 RPM Rotary Quill Servo Winder Servo Slide Computer Memory: 19 Programs with 999 Steps Floppy Memory: 99 Programs with 999 Steps Servo Wire Feed: 1.8 KW Cam Shaft: 2.2 KW Dimensions: 61” x 39” x 71” (155 x 100 x 180 cm) Weight: 2500 lbs. (1133 kgs)
Equipped With:
Equipped with: 4 Axis Rotary Quill Servo Spinner 2 Plane Straightener (TAK) Tooling
Location: Lake Forest
